产品详情

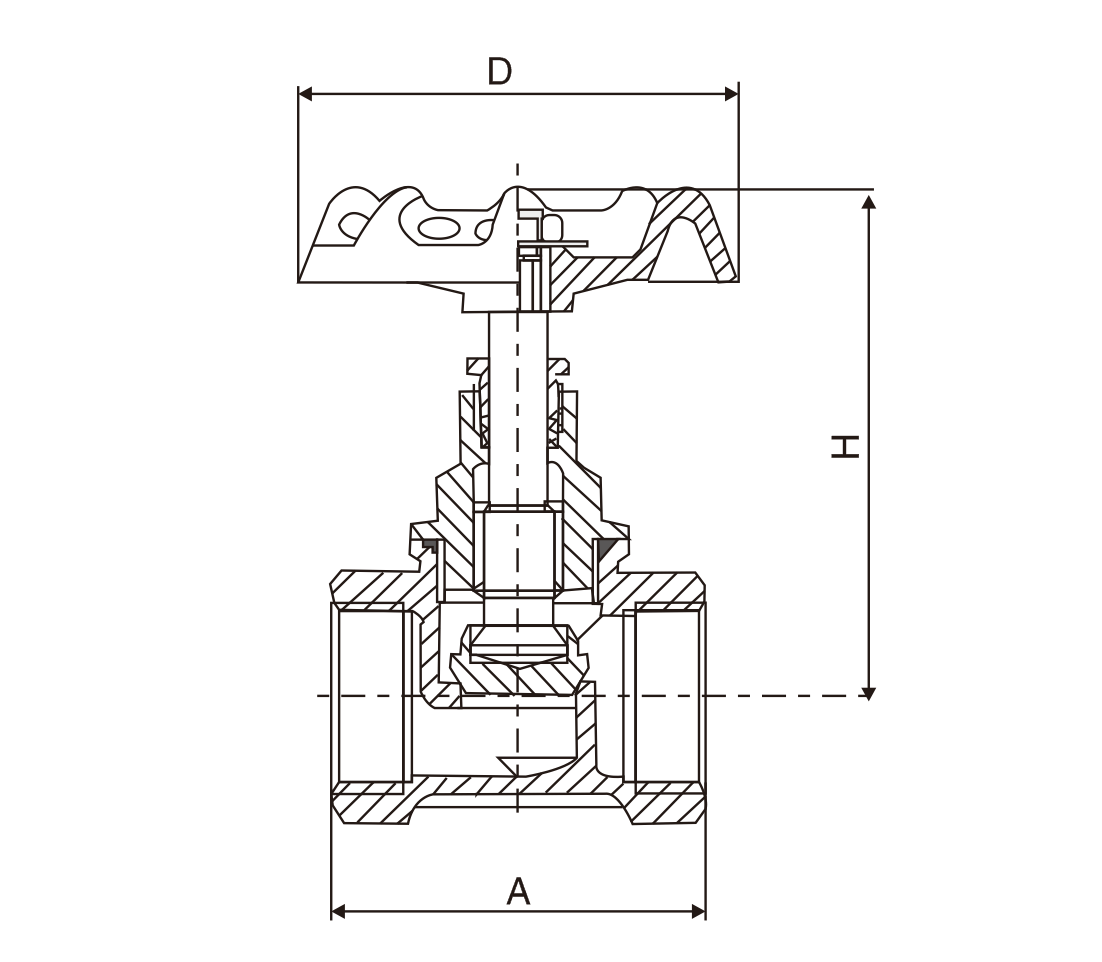

主要外形尺寸
DN(mm) | NPS(in) | A | B | C | D | G |
15 | 1/2 | 45 | 12.5 | 65-68.5 | 55 | 1/2 |
20 | 3/4 | 51 | 16 | 71-76 | 60 | 3/4 |
25 | 1 | 64.5 | 22 | 82-90 | 72 | 1 |
32 | 11/4 | 75 | 26 | 95.4-106.5 | 80 | 11/4 |
40 | 11/2 | 100 | 41 | 122.5-136 | 110 | 2 |
主要外形尺寸
DN(mm) | NPS(in) | A | B | C | D | G |
15 | 1/2 | 45 | 12.5 | 65-68.5 | 55 | 1/2 |
20 | 3/4 | 51 | 16 | 71-76 | 60 | 3/4 |
25 | 1 | 64.5 | 22 | 82-90 | 72 | 1 |
32 | 11/4 | 75 | 26 | 95.4-106.5 | 80 | 11/4 |
40 | 11/2 | 100 | 41 | 122.5-136 | 110 | 2 |
